FH42-11S-0.3SHW(99)

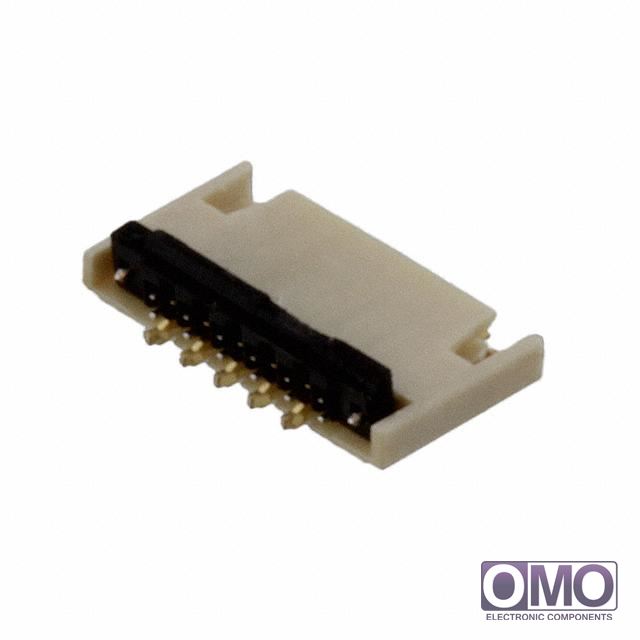

View larger image

Part Number

FH42-11S-0.3SHW(99)

Manufacturer

Description
CONN FPC TOP 11POS 0.30MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
  • To learn about the specification of FH42-11S-0.3SHW(99), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add FH42-11S-0.3SHW(99) with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of FH42-11S-0.3SHW(99).
  • We are offering FH42-11S-0.3SHW(99) for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of FH42-11S-0.3SHW(99)
PackagingCut Tape (CT)
Flat Flex TypeFPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top
Number of Positions11
Pitch0.012" (0.30mm)
TerminationSolder
FFC, FCB Thickness0.12mm
Height Above Board0.065" (1.65mm)
Locking FeatureFlip Lock, Backlock
Cable End TypeNotched
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP), Halogen Free
Actuator MaterialPolyamide (PA), Nylon
FeaturesZero Insertion Force (ZIF)
Voltage Rating30V
Operating Temperature-55°C ~ 85°C
Material Flammability Rating-
Current Rating0.2A
Other NamesH122000CT
