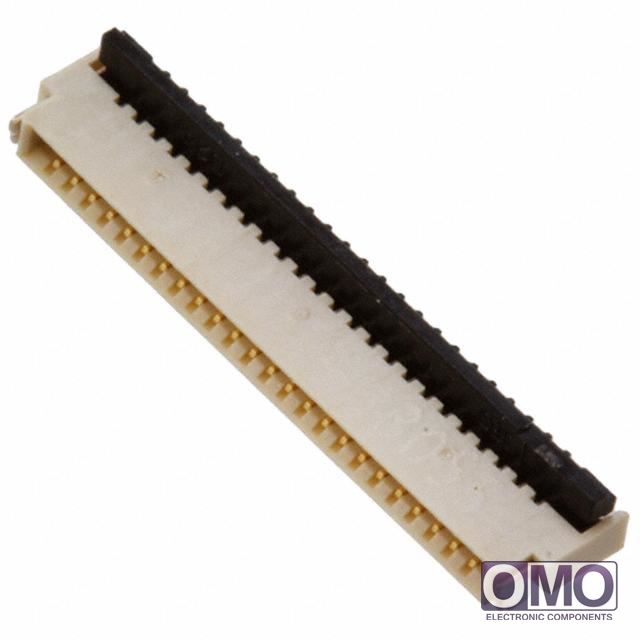

FH34S-24S-0.5SH(50)

View larger image

Part Number

FH34S-24S-0.5SH(50)

Manufacturer

Description
CONN FFC TOP 24POS 0.50MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
  • To learn about the specification of FH34S-24S-0.5SH(50), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add FH34S-24S-0.5SH(50) with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of FH34S-24S-0.5SH(50).
  • We are offering FH34S-24S-0.5SH(50) for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of FH34S-24S-0.5SH(50)
PackagingTape & Reel (TR)
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top
Number of Positions24
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.039" (1.00mm)
Locking FeatureRotary Lock, Backlock
Cable End TypeTapered
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP)
Actuator MaterialPolyamide (PA), Nylon
FeaturesZero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-55°C ~ 85°C
Material Flammability RatingUL94 V-0
Current Rating0.5A
Other NamesFH34S24S05SH50
HFT124TR
