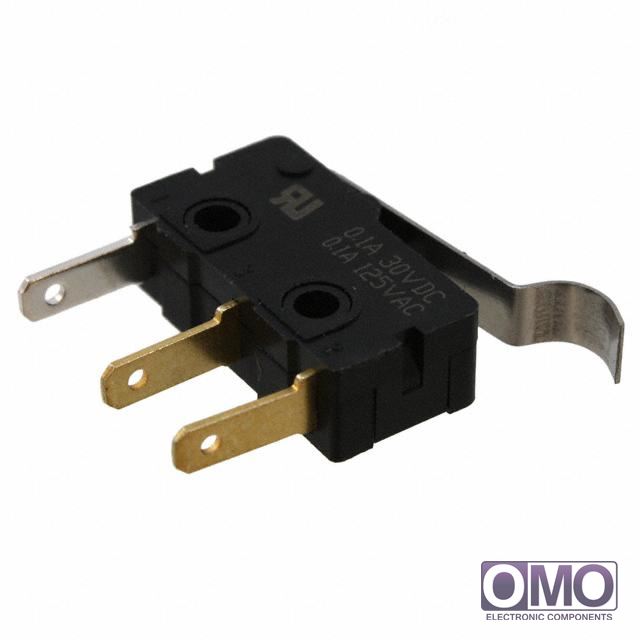

ZM10B70E01

View larger image

Part Number

ZM10B70E01

Manufacturer

Description
ZM SUBMINI SW SPDT 125 VAC
Category
Switches
Family
Snap Action, Limit Switches
  • To learn about the specification of ZM10B70E01, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add ZM10B70E01 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of ZM10B70E01.
  • We are offering ZM10B70E01 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ZM10B70E01
PackagingBulk
CircuitSPDT
Switch FunctionOn-Mom
Current Rating100mA (AC/DC)
Voltage Rating - AC125V
Voltage Rating - DC30V
Actuator TypeLever, Simulated Roller
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.110" (2.8mm)
Ingress Protection-
Features-
Operating Force, Torque16gf
Release Force3gf
Pretravel0.205" (5.2mm)
Differential Travel0.035" (0.9mm)
Overtravel0.025" (0.6mm)
Operating Position0.594" (15.1mm)
Mechanical Life10,000,000 Cycles
Electrical Life1,000,000 Cycles
Operating Temperature-40°C ~ 120°C
Other Names480-5638
ZM10B70E01-ND
