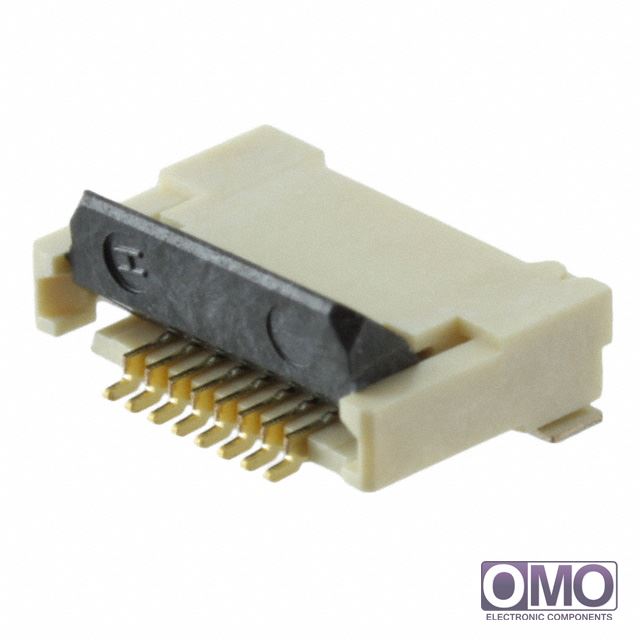

XF2M-0815-1A

View larger image

Part Number

XF2M-0815-1A

Manufacturer

Description
CONN FPC 8POS 0.50MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
  • To learn about the specification of XF2M-0815-1A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add XF2M-0815-1A with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of XF2M-0815-1A.
  • We are offering XF2M-0815-1A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of XF2M-0815-1A
PackagingTape & Reel (TR)
Flat Flex TypeFPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top and Bottom
Number of Positions8
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.083" (2.10mm)
Locking FeatureRotary Lock, Backlock
Cable End TypeTapered
Contact MaterialCopper Alloy
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP), Halogen Free
Actuator MaterialLiquid Crystal Polymer (LCP), Halogen Free
Features-
Voltage Rating50V
Operating Temperature-30°C ~ 85°C
Material Flammability RatingUL94 V-0
Current Rating0.5A
Other NamesOR1109TR
XF2M08151A
