WR-80PB-VF60-N1

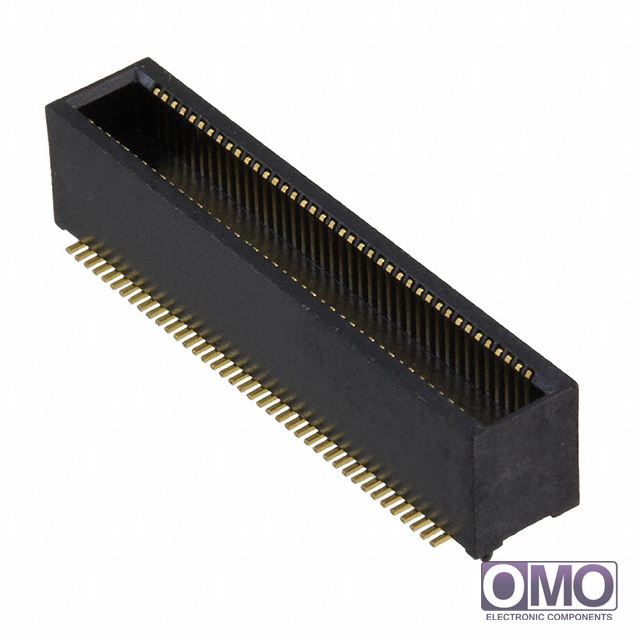

View larger image

Part Number

WR-80PB-VF60-N1

Manufacturer

Description
CONN PLUG 0.5MM 80POS SMD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of WR-80PB-VF60-N1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add WR-80PB-VF60-N1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of WR-80PB-VF60-N1.
  • We are offering WR-80PB-VF60-N1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of WR-80PB-VF60-N1
PackagingTray
Connector TypePlug, Outer Shroud Contacts
Number of Positions80
Pitch0.020" (0.50mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights6mm, 6.5mm, 9mm
Height Above Board0.197" (5.00mm)
Other Names670-1781
WR-80PB-VF60-N1-ND
WR80PBVF60N1
