- Part Number

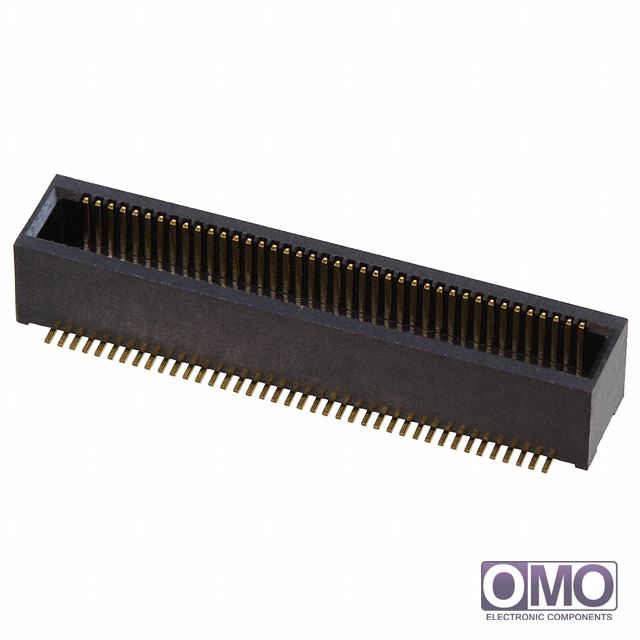

WR-80P-VF50-N1
- Manufacturer
JAE Electronics
- Description
- CONN PLUG 0.5MM 80POS SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of WR-80P-VF50-N1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add WR-80P-VF50-N1 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of WR-80P-VF50-N1.
- We are offering WR-80P-VF50-N1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of WR-80P-VF50-N1
| Packaging | Tray | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 80 | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | 5mm, 5.5mm, 8mm | |
| Height Above Board | 0.157" (4.00mm) | |
| Other Names | 670-1997 WR-80P-VF50-N1-ND WR80PVF50N1 | |
| call me | [email protected] | |
