WR-30SB-VFH05-N1-R1500

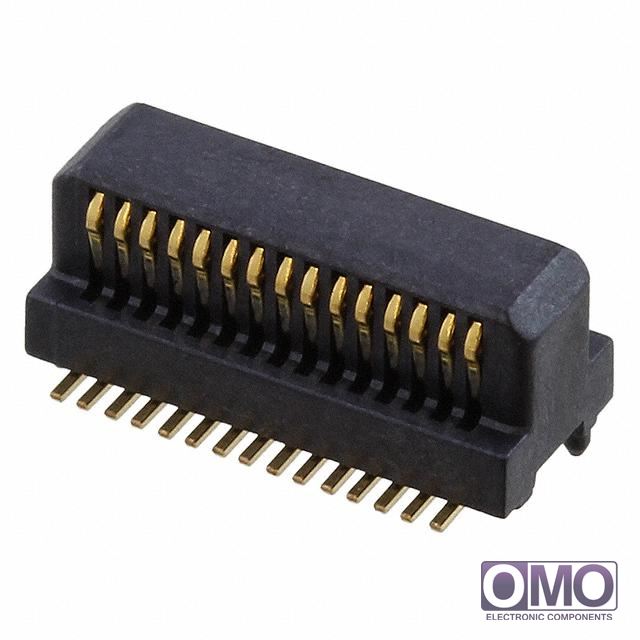

View larger image

Part Number

WR-30SB-VFH05-N1-R1500

Manufacturer

Description
CONN RECEPT 0.5MM 30POS SMD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of WR-30SB-VFH05-N1-R1500, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add WR-30SB-VFH05-N1-R1500 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of WR-30SB-VFH05-N1-R1500.
  • We are offering WR-30SB-VFH05-N1-R1500 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of WR-30SB-VFH05-N1-R1500
PackagingCut Tape (CT)
Connector TypeReceptacle, Center Strip Contacts
Number of Positions30
Pitch0.020" (0.50mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights4.5mm, 5.5mm, 6.5mm
Height Above Board0.148" (3.75mm)
Other Names670-2364
670-2364-1
670-2364-ND
