WP3-S022VA1-R6000

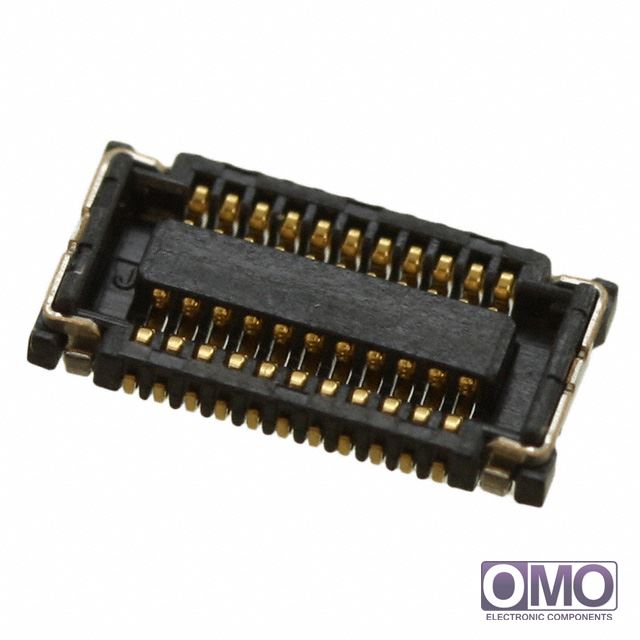

View larger image

Part Number

WP3-S022VA1-R6000

Manufacturer

Description
CONN RCPT 0.4MM 22POS DUAL SMD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of WP3-S022VA1-R6000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add WP3-S022VA1-R6000 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of WP3-S022VA1-R6000.
  • We are offering WP3-S022VA1-R6000 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of WP3-S022VA1-R6000
PackagingTape & Reel (TR)
Connector TypeReceptacle, Center Strip Contacts
Number of Positions22
Pitch0.016" (0.40mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesSolder Retention
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights1mm
Height Above Board0.039" (1.00mm)
Other Names670-1177-2
AA03-S022VA1
AA03-S022VA1-R6000
WP3-S022VA1-R6000-ND
