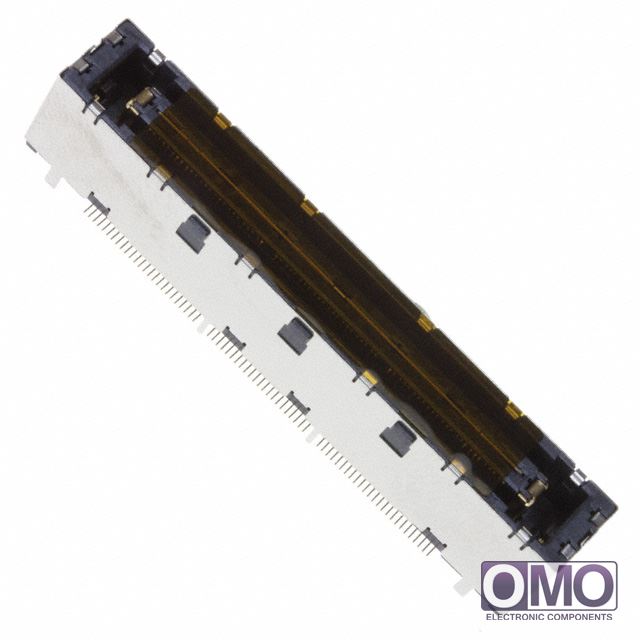

WD2F144WB1R300

View larger image

Part Number

WD2F144WB1R300

Manufacturer

Description
CONN RCPT PC SIDE 144POS SMD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of WD2F144WB1R300, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add WD2F144WB1R300 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of WD2F144WB1R300.
  • We are offering WD2F144WB1R300 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of WD2F144WB1R300
PackagingTape & Reel (TR)
Connector TypeReceptacle, Center Strip Contacts
Number of Positions148 (144 + 4 Power)
Pitch0.020" (0.50mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness12µin (0.30µm)
Mated Stacking Heights17.9mm
Height Above Board0.457" (11.60mm)
Other Names670-2454-2
