- Part Number

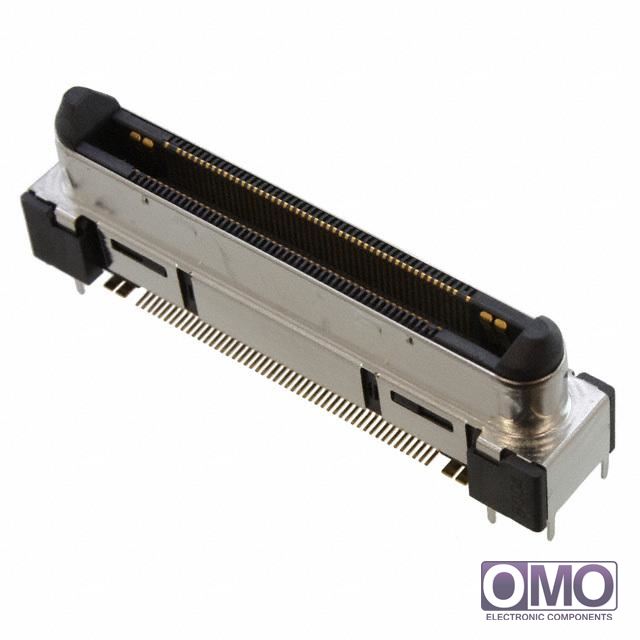

WD-100P4V-VF120-EA-T45
- Manufacturer
JAE Electronics
- Description
- CONN PLUG 0.5MM 100POS GOLD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of WD-100P4V-VF120-EA-T45, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add WD-100P4V-VF120-EA-T45 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of WD-100P4V-VF120-EA-T45.
- We are offering WD-100P4V-VF120-EA-T45 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of WD-100P4V-VF120-EA-T45
| Packaging | Tray | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 100 | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Through Hole | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | - | |
| Height Above Board | 0.531" (13.50mm) | |
| Other Names | 670-2382 WD-100P4V-VF120-E-001 WD100P4VVF120EAT45 | |
| call me | [email protected] | |
