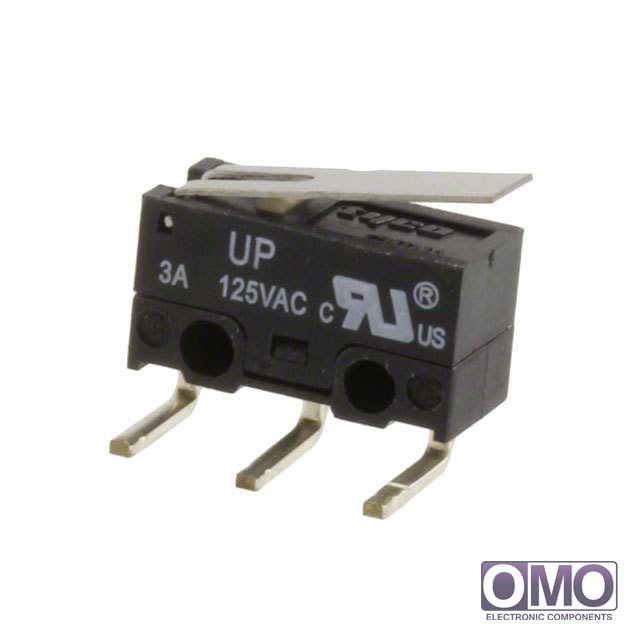

UP3DTBNLB04

View larger image

Part Number

UP3DTBNLB04

Manufacturer

Description
UP3DTBNLB04 MICROSWITCH SNAP
Category
Switches
Family
Snap Action, Limit Switches
  • To learn about the specification of UP3DTBNLB04, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add UP3DTBNLB04 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of UP3DTBNLB04.
  • We are offering UP3DTBNLB04 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of UP3DTBNLB04
PackagingBulk
CircuitSPDT
Switch FunctionOn-Mom
Current Rating3A (AC)
Voltage Rating - AC125V
Voltage Rating - DC-
Actuator TypeLever, Straight
Mounting TypeThrough Hole, Right Angle
Termination StylePC Pin
Ingress Protection-
Features-
Operating Force, Torque30gf
Release Force5gf
Pretravel0.120" (3.0mm)
Differential Travel0.031" (0.8mm)
Overtravel0.025" (0.6mm)
Operating Position0.312" (7.9mm)
Mechanical Life1,000,000 Cycles
Electrical Life6,000 Cycles
Operating Temperature-40°C ~ 80°C
Other Names2-1825043-0
A109346
