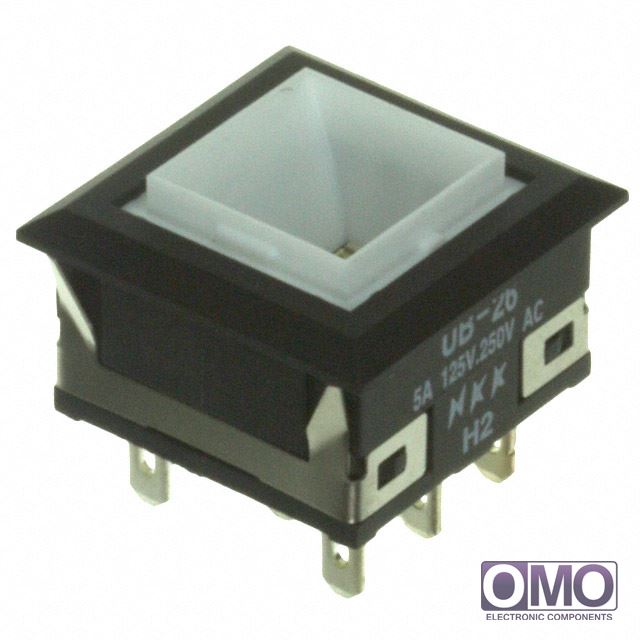

- Part Number
UB26KKW016G
- Manufacturer
NKK Switches
- Description
- SWITCH PUSHBUTTON DPDT 5A 125V
- Category
- Switches
- Family
- Pushbutton Switches
- To learn about the specification of UB26KKW016G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add UB26KKW016G with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of UB26KKW016G.
- We are offering UB26KKW016G for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of UB26KKW016G
| Packaging | Bulk | |
| Type | Standard, Illuminated | |
| Circuit | DPDT | |
| Switch Function | On-On | |
| Current Rating | 5A (AC/DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Plunger for Cap | |
| Color - Actuator/Cap | - | |
| Illumination Type, Color | LED, Blue | |
| Illumination Voltage (Nominal) | 3.8 VDC | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Solder Lug | |
| Ingress Protection | - | |
| Features | Epoxy Sealed Terminals | |
| Panel Cutout Dimensions | Square - 16.20mm² | |
| Operating Temperature | -25°C ~ 50°C | |
| Mechanical Life | 200,000 Cycles | |
| Electrical Life | 10,000 Cycles | |
| call me | [email protected] | |
