- Part Number

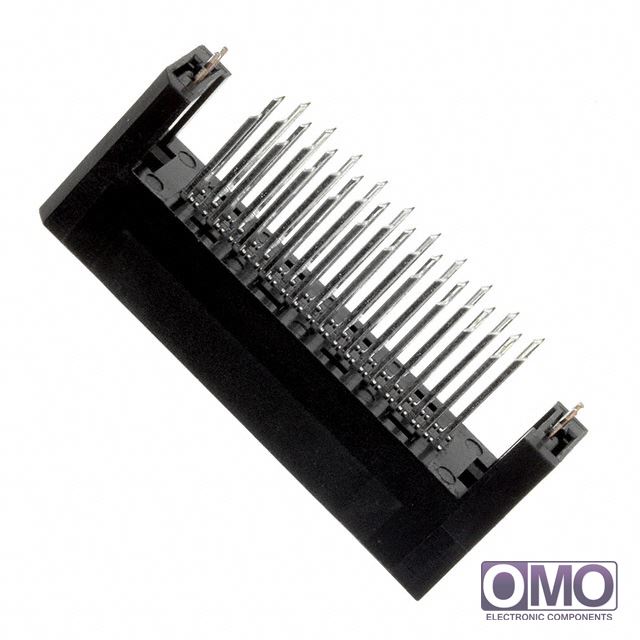

TX25-40P-12ST-H1E
- Manufacturer
JAE Electronics
- Description
- CONN PLUG 1.27MM 40POS GOLD PCB
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of TX25-40P-12ST-H1E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add TX25-40P-12ST-H1E with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of TX25-40P-12ST-H1E.
- We are offering TX25-40P-12ST-H1E for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of TX25-40P-12ST-H1E
| Packaging | Tray | |
| Connector Type | Plug, Center Strip Contacts | |
| Number of Positions | 40 | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 2 | |
| Mounting Type | Through Hole | |
| Features | Board Lock | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | 18mm, 22mm, 24mm | |
| Height Above Board | 0.598" (15.20mm) | |
| Other Names | 670-1440 TX2540P12STH1E | |
| call me | [email protected] | |
