TX24-80R-10ST-N1E

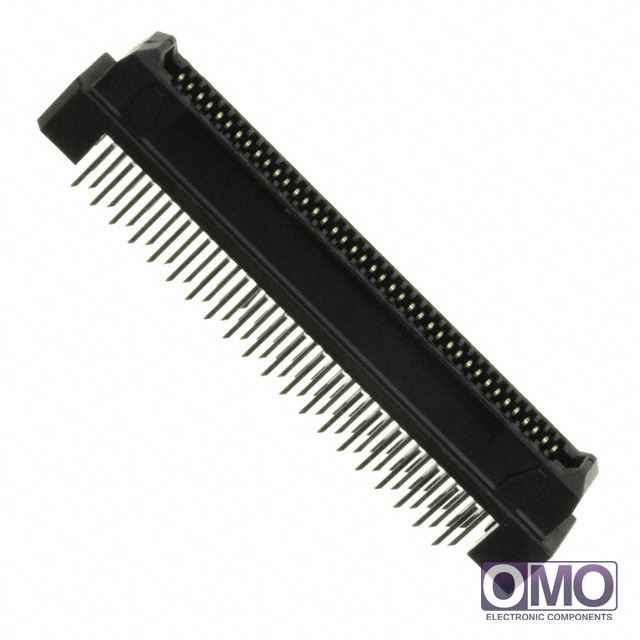

View larger image

Part Number

TX24-80R-10ST-N1E

Manufacturer

Description
CONN RCPT 1.27MM 80POS GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of TX24-80R-10ST-N1E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add TX24-80R-10ST-N1E with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of TX24-80R-10ST-N1E.
  • We are offering TX24-80R-10ST-N1E for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of TX24-80R-10ST-N1E
PackagingTray
Connector TypeReceptacle, Outer Shroud Contacts
Number of Positions80
Pitch0.050" (1.27mm)
Number of Rows2
Mounting TypeThrough Hole
Features-
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights16mm, 18mm, 22mm
Height Above Board0.563" (14.30mm)
Other Names670-1409
