TX24-50R-12ST-H1E

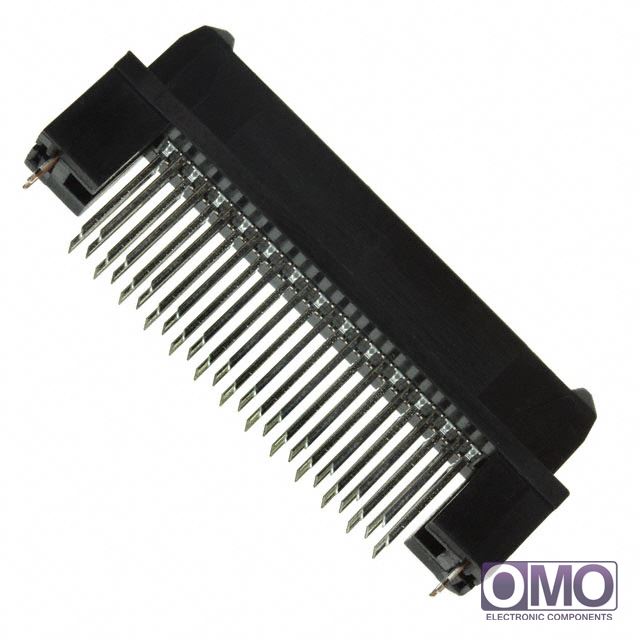

View larger image

Part Number

TX24-50R-12ST-H1E

Manufacturer

Description
CONN RCPT 1.27MM 50POS GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of TX24-50R-12ST-H1E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add TX24-50R-12ST-H1E with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of TX24-50R-12ST-H1E.
  • We are offering TX24-50R-12ST-H1E for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of TX24-50R-12ST-H1E
PackagingTray
Connector TypeReceptacle, Outer Shroud Contacts
Number of Positions50
Pitch0.050" (1.27mm)
Number of Rows2
Mounting TypeThrough Hole
FeaturesBoard Lock
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights18mm, 20mm, 24mm
Height Above Board0.642" (16.30mm)
Other Names670-1390
