TSW-120-22-F-D-RA-020

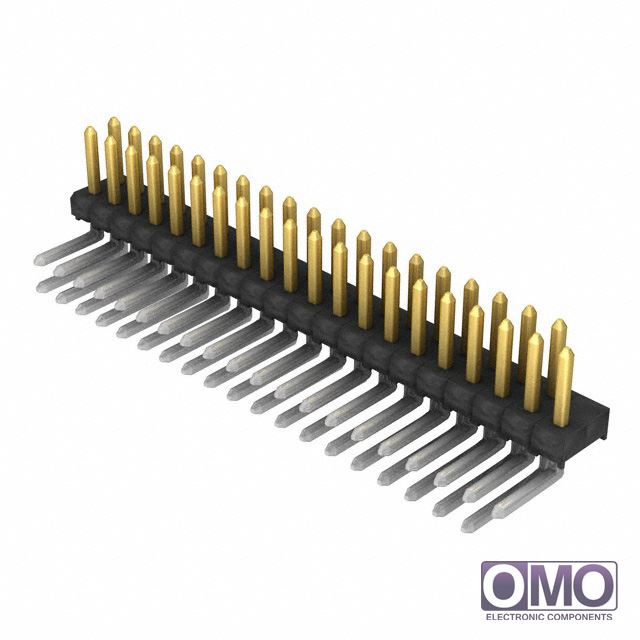

View larger image

Part Number

TSW-120-22-F-D-RA-020

Manufacturer

Description
CONN HEADER 40POS .100" DL GOLD
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
  • To learn about the specification of TSW-120-22-F-D-RA-020, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add TSW-120-22-F-D-RA-020 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of TSW-120-22-F-D-RA-020.
  • We are offering TSW-120-22-F-D-RA-020 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of TSW-120-22-F-D-RA-020
PackagingTube
Contact TypeMale Pin
Connector TypeHeader, Unshrouded
Number of Positions40
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows2
Row Spacing0.100" (2.54mm)
Contact Mating Length0.230" (5.84mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening Type-
Features-
Contact FinishGold
Contact Finish Thickness3µin (0.08µm)
ColorBlack
Other NamesQ3809475A
