- Part Number

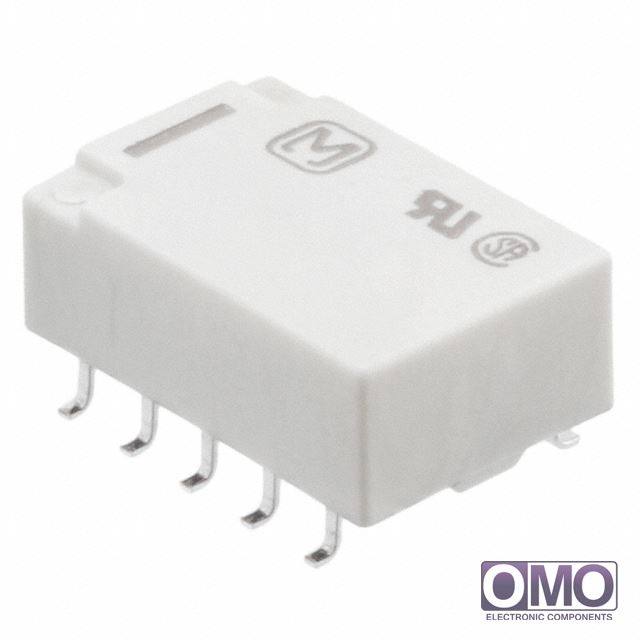

TQ2SS-1.5V
- Manufacturer
Panasonic Electric Works
- Description
- RELAY TELECOM DPDT 2A 1.5V
- Category
- Relays
- Family
- Signal Relays, Up to 2 Amps
- To learn about the specification of TQ2SS-1.5V, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add TQ2SS-1.5V with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of TQ2SS-1.5V.
- We are offering TQ2SS-1.5V for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of TQ2SS-1.5V
| Packaging | Tube | |
| Relay Type | Telecom | |
| Coil Type | Non Latching | |
| Coil Current | 93.8mA | |
| Coil Voltage | 1.5VDC | |
| Contact Form | DPDT (2 Form C) | |
| Contact Rating (Current) | 2A | |
| Switching Voltage | 125VAC, 220VDC - Max | |
| Turn On Voltage (Max) | 1.13 VDC | |
| Turn Off Voltage (Min) | 0.15 VDC | |
| Operate Time | 4ms | |
| Release Time | 4ms | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | |
| Coil Power | 140 mW | |
| Coil Resistance | 16 Ohms | |
| Operating Temperature | -40°C ~ 85°C | |
| Other Names | 255-2280-5 TQ2SS-1.5V-ND TQ2SS15V | |
| call me | [email protected] | |
