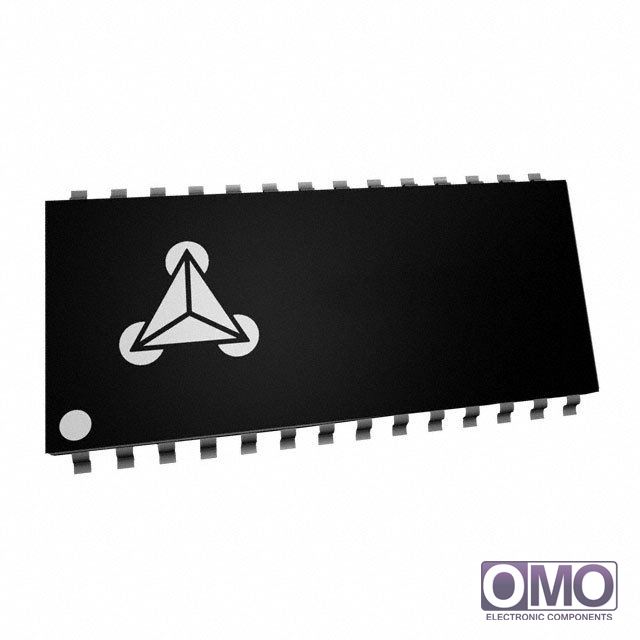

Part Number

TMC249A-SA

Manufacturer

Description
IC MOTOR CTRLR SPI 28SOIC
Category
Integrated Circuits (ICs)
Family
PMIC - Motor Drivers, Controllers

  • To learn about the specification of TMC249A-SA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add TMC249A-SA with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of TMC249A-SA.
  • We are offering TMC249A-SA for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of TMC249A-SA
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionController - Commutation, Direction Management
Output ConfigurationPre-Driver - Half Bridge (4)
InterfaceSPI
TechnologyHVCMOS
Step Resolution1 ~ 1/64
ApplicationsGeneral Purpose
Current - Output-
Voltage - Supply3.3 V ~ 5.5 V
Voltage - Load-
Operating Temperature-25°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SOIC
Other Names00-0015
1460-1056-5
