- Part Number

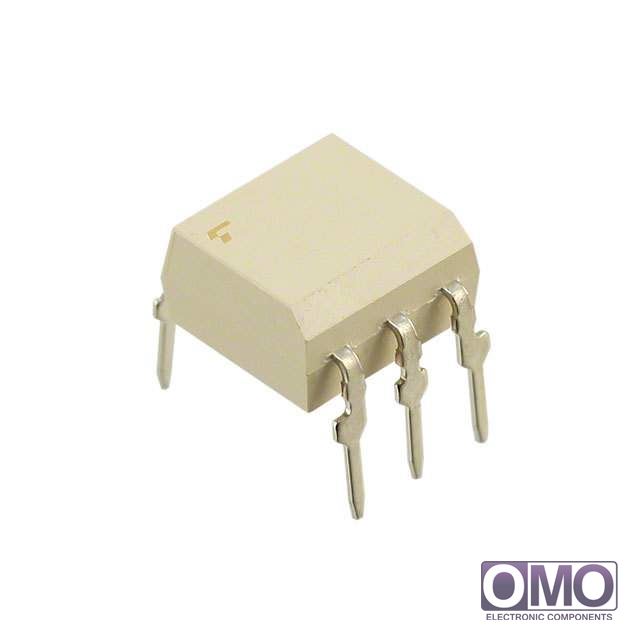

TLP3546(F)
- Manufacturer
Toshiba Semiconductor & Storage
- Description
- PHOTOCOUPLER PHOTORELAY 6-DIP
- Category
- Relays
- Family
- Solid State Relays
- To learn about the specification of TLP3546(F), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add TLP3546(F) with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of TLP3546(F).
- We are offering TLP3546(F) for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of TLP3546(F)
| Packaging | Tube | |
| Circuit | SPST-NO (1 Form A) | |
| Output Type | AC, DC | |
| On-State Resistance | 200 mOhm | |
| Load Current | 2A | |
| Voltage - Input | 1.33VDC | |
| Voltage - Load | 0 ~ 100 V | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Package / Case | 6-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 6-DIP | |
| Relay Type | Relay | |
| Other Names | TLP3546 (F) TLP3546F | |
| call me | [email protected] | |
