Part Number

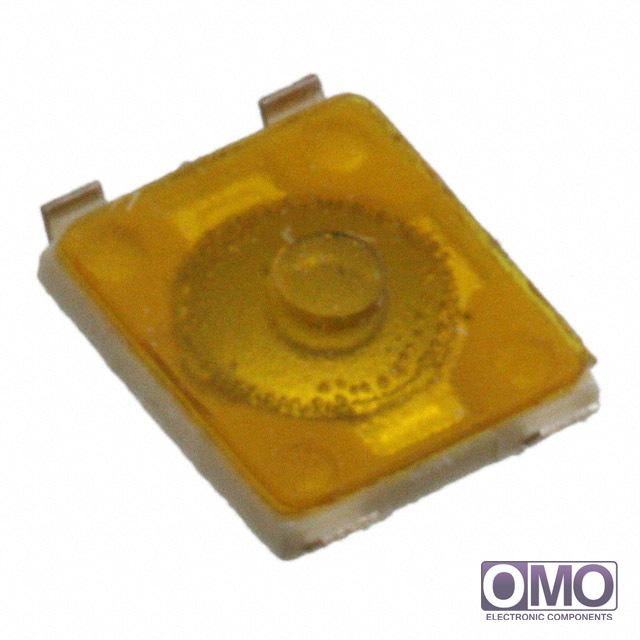

TL3700AF100QG

Manufacturer

Description
SWITCH TACTILE SPST-NO 0.02A 15V
Category
Switches
Family
Tactile Switches

  • To learn about the specification of TL3700AF100QG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add TL3700AF100QG with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of TL3700AF100QG.
  • We are offering TL3700AF100QG for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of TL3700AF100QG
PackagingTape & Reel (TR)
CircuitSPST-NO
Switch FunctionOff-Mom
Contact Rating @ Voltage0.02A @ 15VDC
Actuator TypeStandard
Mounting TypeSurface Mount
Actuator Height off PCB, from Pins0.65mm
Actuator OrientationTop Actuated
Termination StyleGull Wing
Outline3.00mm x 2.60mm
IlluminationNon-Illuminated
Illumination Voltage (Nominal)-
Illumination Type, Color-
Operating Force100gf
Ingress Protection-
Features-
Actuator Material-
Switch Travel0.15mm
Mechanical Life100,000 Cycles
Operating Temperature-40°C ~ 85°C
Other NamesEG4918TR
