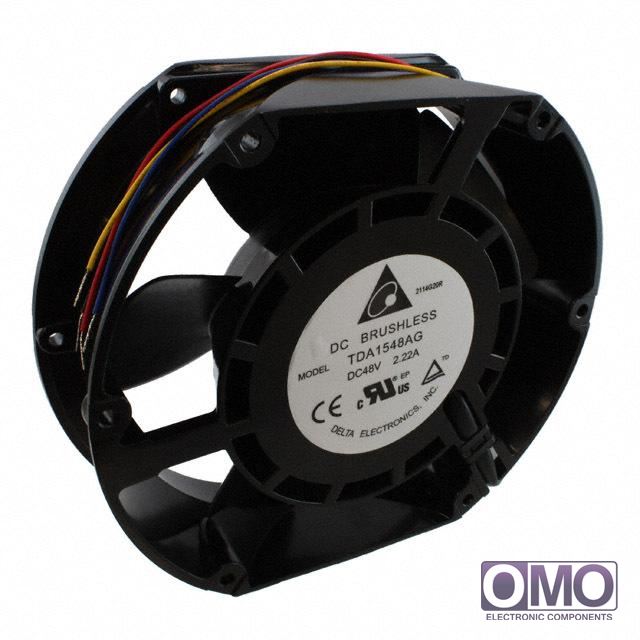

TDA1548AG

To learn about the specification of TDA1548AG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TDA1548AG with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of TDA1548AG.
We are offering TDA1548AG for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of TDA1548AG

Voltage - Rated	48VDC
Size / Dimension	Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W
Air Flow	402.1 CFM (11.39m³/min)
Static Pressure	2.854 in H2O (710.9 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	73.3 dB(A)
Power (Watts)	93.7W
RPM	5400 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	1.7 lbs (771.1g)
Operating Temperature	-
Current Rating	1.85A
Voltage Range	30 ~ 60VDC
Life Expectancy	-
Material - Frame	Aluminum
Material - Blade	Plastic
Other Names	603-1693
