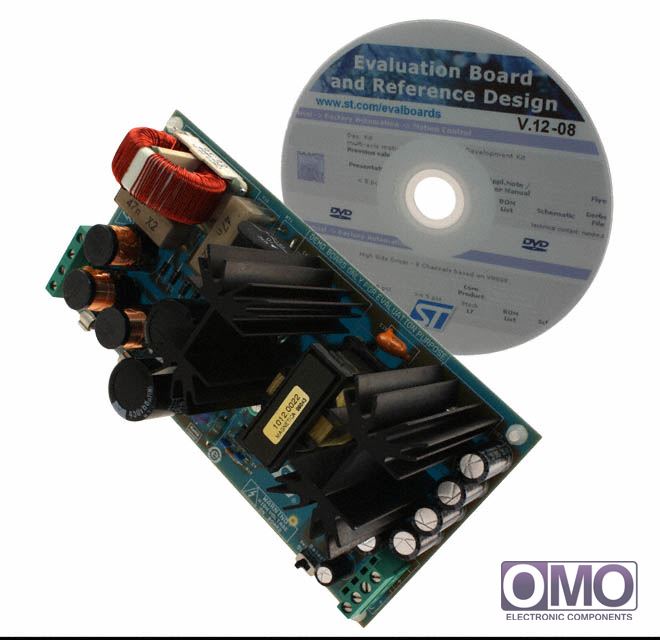

STEVAL-ISA054V1

View larger image

Part Number

STEVAL-ISA054V1

Manufacturer

Description
BOARD DEMO STW9N150 100W 3PHASE
Category
Programmers, Development Systems
Family
Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
  • To learn about the specification of STEVAL-ISA054V1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add STEVAL-ISA054V1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of STEVAL-ISA054V1.
  • We are offering STEVAL-ISA054V1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of STEVAL-ISA054V1
Main PurposeAC/DC, Primary Side
Outputs and Type2, Isolated
Power - Output100W
Voltage - Output24V, 3.3V or 5V
Current - Output4A, 1A
Voltage - Input180 ~ 265 VAC, 320 ~ 480 VAC
Regulator TopologyFlyback
Frequency - Switching250kHz
Board TypeFully Populated
Supplied ContentsBoard
Utilized IC / PartL5970, STW9N150, UC3844B
Other Names497-8849
STEVALISA054V1
