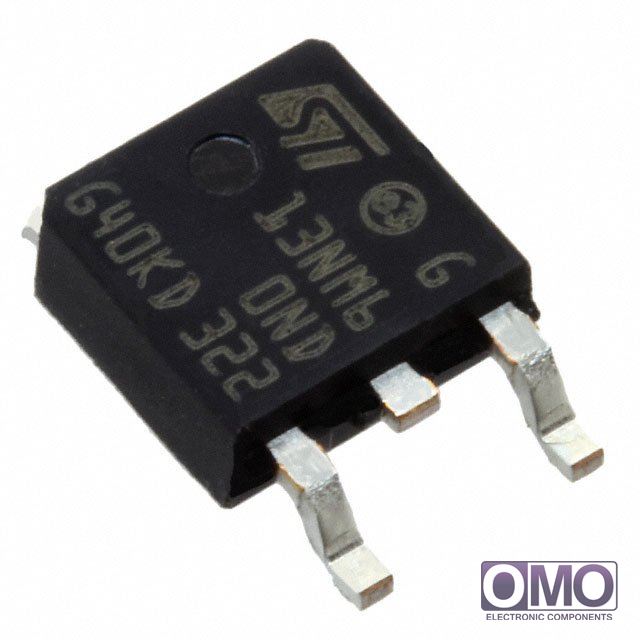

- Part Number
STD13NM60ND
- Manufacturer
STMicroelectronics
- Description
- MOSFET N-CH 600V 11A DPAK
- Category
- Discrete Semiconductor Products
- Family
- FETs - Single
- To learn about the specification of STD13NM60ND, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add STD13NM60ND with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of STD13NM60ND.
- We are offering STD13NM60ND for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of STD13NM60ND
| Packaging | Cut Tape (CT) | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 600V | |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) | |
| Rds On (Max) @ Id, Vgs | 380 mOhm @ 5.5A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 24.5nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 845pF @ 50V | |
| Power - Max | 109W | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | |
| Supplier Device Package | DPAK | |
| Other Names | 497-13863-1 | |
| call me | [email protected] | |
