- Part Number
SSM6J505NU,LF
- Manufacturer
Toshiba Semiconductor & Storage
- Description
- MOSFET P CH 12V 12A UDFN6B
- Category
- Discrete Semiconductor Products
- Family
- FETs - Single
- To learn about the specification of SSM6J505NU,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add SSM6J505NU,LF with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of SSM6J505NU,LF.
- We are offering SSM6J505NU,LF for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SSM6J505NU,LF
| Packaging | Cut Tape (CT) | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate, 1.2V Drive | |
| Drain to Source Voltage (Vdss) | 12V | |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) | |
| Rds On (Max) @ Id, Vgs | 12 mOhm @ 4A, 4.5V | |
| Vgs(th) (Max) @ Id | 1V @ 1mA | |
| Gate Charge (Qg) @ Vgs | 37.6nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 2700pF @ 10V | |
| Power - Max | 1.25W | |
| Mounting Type | Surface Mount | |

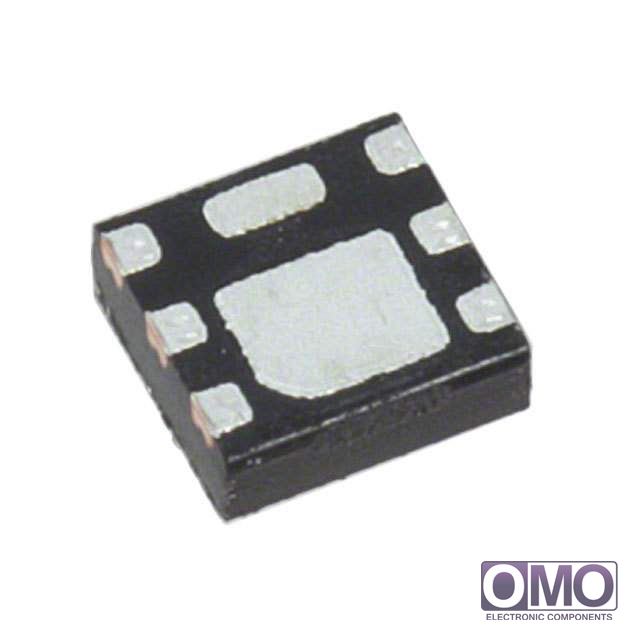

| Package / Case | 6-WDFN Exposed Pad | |
| Supplier Device Package | 6-UDFN (2x2) | |
| Other Names | SSM6J505NULFCT | |
| call me | [email protected] | |
