- Part Number

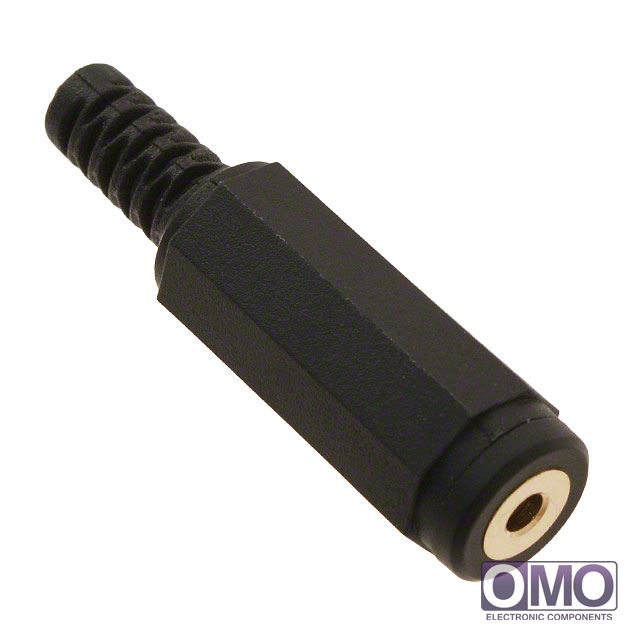

SR-2501
- Manufacturer
CUI Inc.
- Description
- CONN 2.5MM FEMALE STEREO JACK
- Category
- Connectors, Interconnects
- Family
- Barrel - Audio Connectors
- To learn about the specification of SR-2501, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add SR-2501 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of SR-2501.
- We are offering SR-2501 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SR-2501
| Packaging | Bulk | |
| Connector Type | Phone Jack | |
| Gender | Female | |
| Signal Lines | Stereo | |
| Plug/Mating Plug Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts | |
| Internal Switch(s) | Does Not Contain Switch | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Features | - | |
| Color - Contact | Gold | |
| Contact Material | Brass | |
| Contact Material - Plating | Gold | |
| Housing Material | Plastic | |
| Housing Color | Black | |
| Operating Temperature | -20°C ~ 70°C | |
| Voltage - Rated | - | |
| Current Rating | - | |
| Other Names | 045-0949R CP-2521 SR2501 | |
| call me | [email protected] | |
