SM04B-NSHSS-TB (LF)(SN)

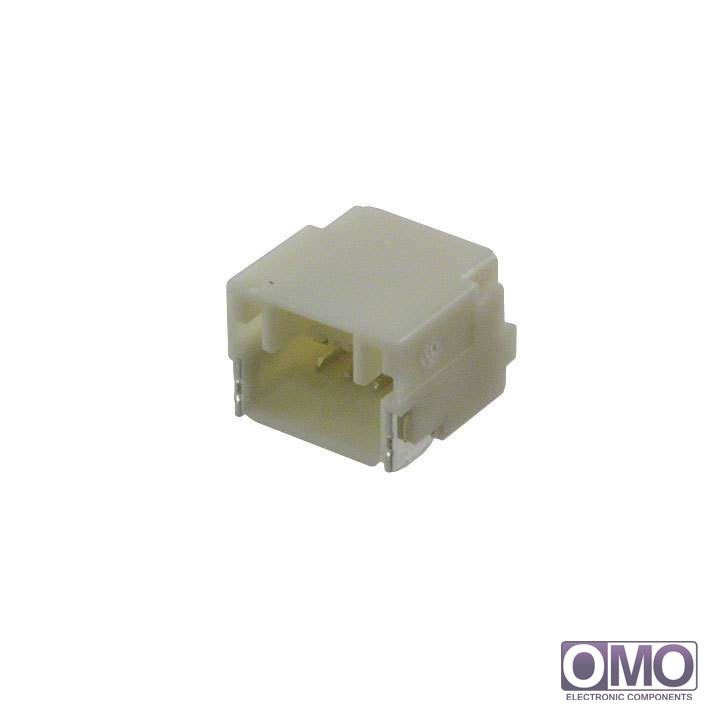

View larger image

Part Number

SM04B-NSHSS-TB (LF)(SN)

Manufacturer

Description
CONN HEADER 4 POS R/A SMD 1.0MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
  • To learn about the specification of SM04B-NSHSS-TB (LF)(SN), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SM04B-NSHSS-TB (LF)(SN) with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SM04B-NSHSS-TB (LF)(SN).
  • We are offering SM04B-NSHSS-TB (LF)(SN) for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SM04B-NSHSS-TB (LF)(SN)
PackagingTape & Reel (TR)
Contact TypeOuter Shroud Contact
Connector TypeHeader, Shrouded
Number of Positions4
Number of Positions LoadedAll
Pitch0.039" (1.00mm)
Number of Rows1
Row Spacing-
Contact Mating Length-
Mounting TypeSurface Mount, Right Angle
TerminationSolder
Fastening TypeLatch Holder
FeaturesSolder Retention
Contact FinishTin
Contact Finish Thickness-
ColorNatural
Other Names455-2774-2
SM04BNSHSSTBLFSN
