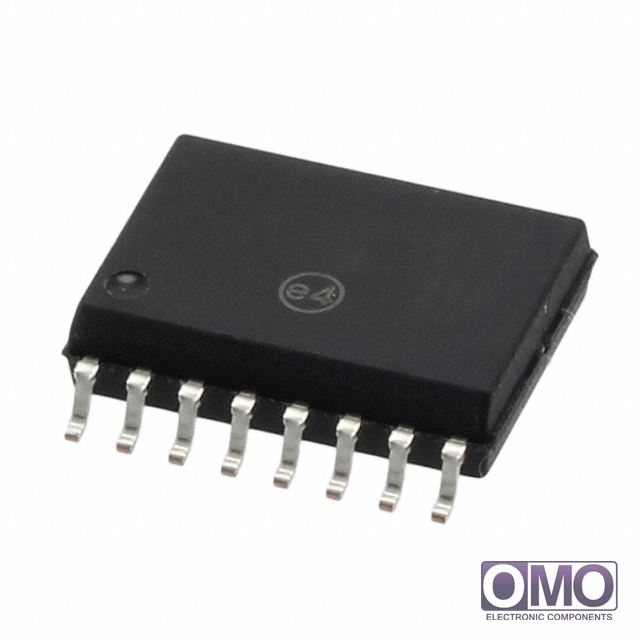

Part Number

SI8232DB-B-IS

Manufacturer

Description
DGTL ISO 5KV GATE DRIVER 16SOIC
Category
Isolators
Family
Isolators - Gate Drivers

  • To learn about the specification of SI8232DB-B-IS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SI8232DB-B-IS with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SI8232DB-B-IS.
  • We are offering SI8232DB-B-IS for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SI8232DB-B-IS
PackagingTube
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)60ns, 60ns
Pulse Width Distortion (Max)5.6ns
Rise / Fall Time (Typ)20ns, 20ns (Max)
Current - Output High, Low-
Current - Peak Output500mA
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Supply4.5 V ~ 5.5 V
Operating Temperature-40°C ~ 125°C
Mounting Type-
Package / Case-
Supplier Device Package-
ApprovalsCQC, CSA, UR, VDE
Other Names336-3001-5
