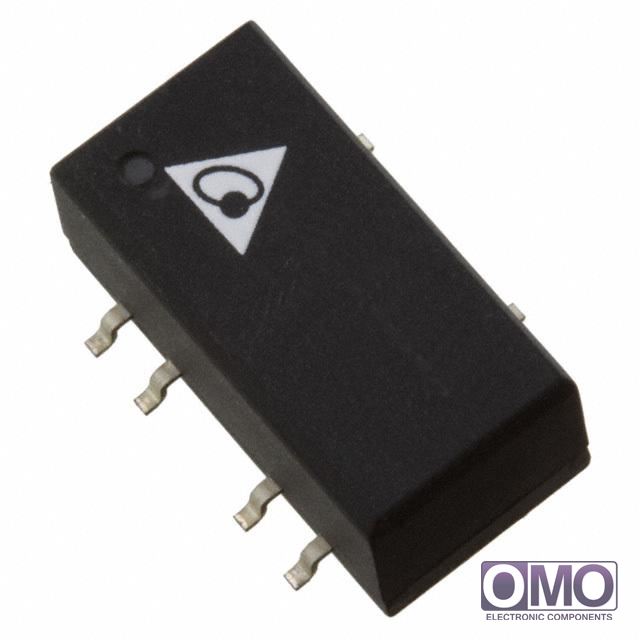

SH01D0505A

View larger image

Part Number

SH01D0505A

Manufacturer

Description
DCDC CONVERTER +/-5VOUT 1W
Category
Power Supplies - Board Mount
Family
DC DC Converters
  • To learn about the specification of SH01D0505A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SH01D0505A with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SH01D0505A.
  • We are offering SH01D0505A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SH01D0505A
PackagingTube
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)4.5V
Voltage - Input (Max)5.5V
Voltage - Output 15V
Voltage - Output 2-5V
Voltage - Output 3-
Current - Output (Max)100mA, 100mA
Power (Watts) - Manufacture Series1W
Voltage - Isolation1.5kV (1500V)
FeaturesSCP
Mounting TypeSurface Mount
Package / Case8-SMD Module (5 Leads)
Size / Dimension0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Operating Temperature-40°C ~ 85°C
Efficiency74%
Power (Watts) - Max1W
Other Names941-1285
