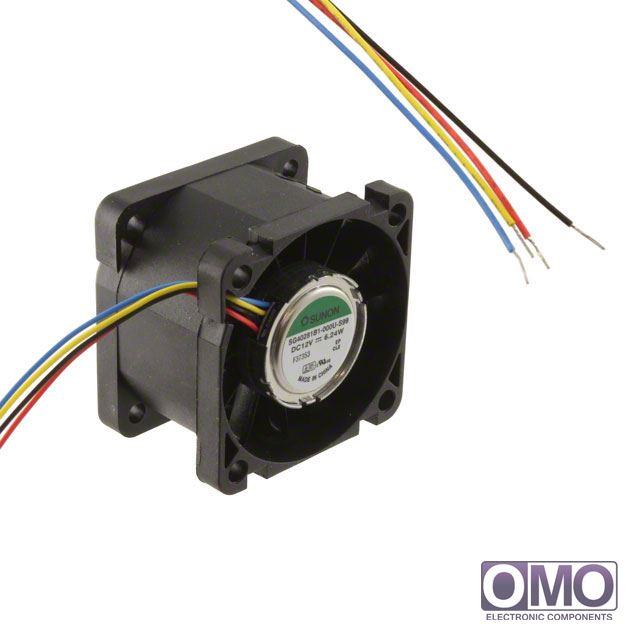

SG40281B1-000U-S99

To learn about the specification of SG40281B1-000U-S99, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SG40281B1-000U-S99 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of SG40281B1-000U-S99.
We are offering SG40281B1-000U-S99 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of SG40281B1-000U-S99

Voltage - Rated	12VDC
Size / Dimension	Square - 40mm L x 40mm H x 28mm W
Air Flow	25.6 CFM (0.725m³/min)
Static Pressure	1.450 in H2O (361.2 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	58.5 dB
Power (Watts)	6.24W
RPM	19000 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	0.077 lb (34.93g)
Operating Temperature	-
Current Rating	0.520A
Voltage Range	-
Life Expectancy	80000 hrs @ 40°C
Material - Frame	-
Material - Blade	-
Other Names	259-1635 SG40281B1-000U-S99-ND
