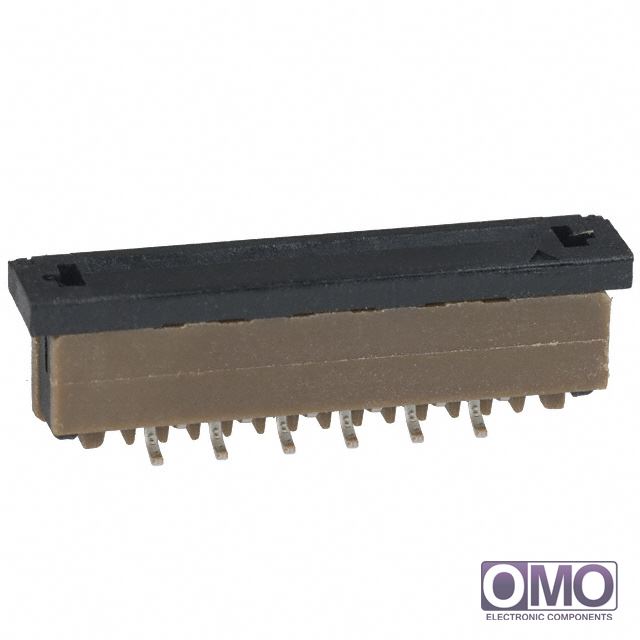

SFW12S-2STE1LF

View larger image

Part Number

SFW12S-2STE1LF

Manufacturer

Description
CONN FFC FPC VERT 12POS 1MM SMD
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
  • To learn about the specification of SFW12S-2STE1LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SFW12S-2STE1LF with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SFW12S-2STE1LF.
  • We are offering SFW12S-2STE1LF for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SFW12S-2STE1LF
PackagingTape & Reel (TR)
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount
Connector/Contact TypeContacts, Vertical, 1 Sided
Number of Positions12
Pitch0.039" (1.00mm)
TerminationSolder
FFC, FCB Thickness0.30mm, 0.33mm
Height Above Board0.209" (5.30mm)
Locking FeatureSlide Lock
Cable End TypeStraight, Tapered
Contact MaterialPhosphor Bronze
Contact FinishTin
Housing MaterialThermoplastic, Glass Filled
Actuator MaterialThermoplastic, Glass Filled
FeaturesZero Insertion Force (ZIF)
Voltage Rating100V
Operating Temperature-55°C ~ 105°C
Material Flammability RatingUL94 V-0
Current Rating1A
Other Names609-1144-2
SFW12S2STE1LF
