- Part Number

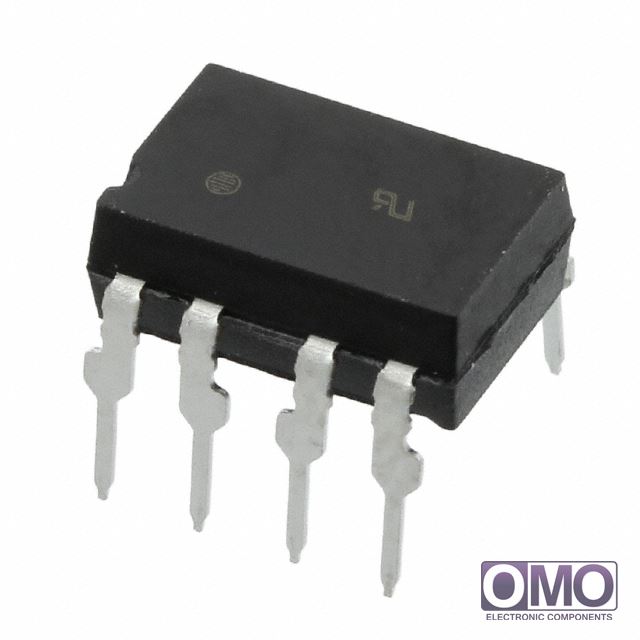

SFH6700
- Manufacturer
Vishay Semiconductor/Opto Division
- Description
- OPTOISO 5.3KV TRI-STATE 8DIP
- Category
- Isolators
- Family
- Optoisolators - Logic Output
- To learn about the specification of SFH6700, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add SFH6700 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of SFH6700.
- We are offering SFH6700 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SFH6700
| Packaging | Tube | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 5300Vrms | |
| Common Mode Transient Immunity (Min) | 1kV/µs | |
| Input Type | DC | |
| Output Type | Tri-State | |
| Current - Output / Channel | 25mA | |
| Data Rate | 5MBd | |
| Propagation Delay tpLH / tpHL (Max) | 300ns, 300ns | |
| Rise / Fall Time (Typ) | 40ns, 10ns | |
| Voltage - Forward (Vf) (Typ) | 1.6V | |
| Current - DC Forward (If) (Max) | 10mA | |
| Voltage - Supply | 4.5 V ~ 15 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 8-DIP | |
| call me | [email protected] | |
