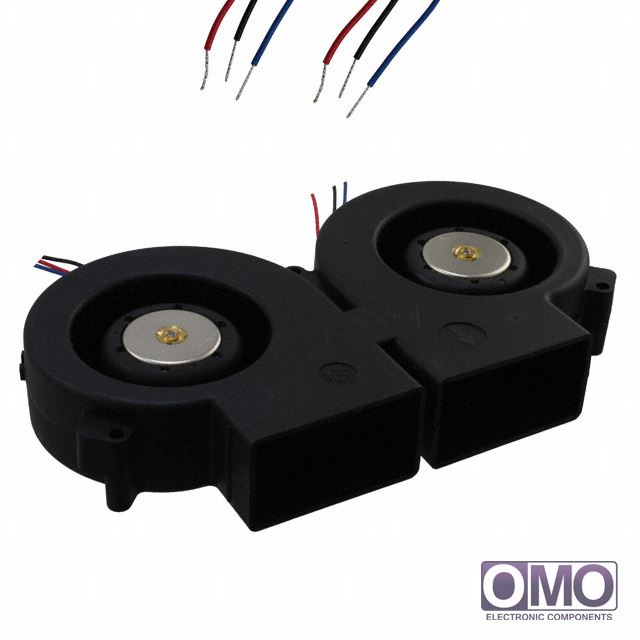

SFB0412VH-F00

View larger image

Part Number

SFB0412VH-F00

Manufacturer

Description
FAN BLOWER 195.2X33MM 12VDC WIRE
Category
Fans, Thermal Management
Family
DC Fans
  • To learn about the specification of SFB0412VH-F00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SFB0412VH-F00 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SFB0412VH-F00.
  • We are offering SFB0412VH-F00 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SFB0412VH-F00
Voltage - Rated12VDC
Size / DimensionRectangular - 195.2mm L x 108.6mm H x 33mm W
Air Flow91.0 CFM (2.58m³/min)
Static Pressure2.694 in H2O (671.1 Pa)
Bearing TypeBall
Fan TypeBlower
FeaturesSpeed Sensor (Tach)
Noise67 dB(A)
Power (Watts)55.2W
RPM5300 RPM
Termination3 Wire Leads
Ingress Protection-
Weight0.849 lb (385.1g)
Operating Temperature14 ~ 140°F (-10 ~ 60°C)
Current Rating4.6A
Voltage Range7 ~ 12.6VDC
Life Expectancy50000 hrs @ 40°C
Material - FramePlastic
Material - BladePlastic
Other Names603-1464
SFB0412VHF00
