- Part Number

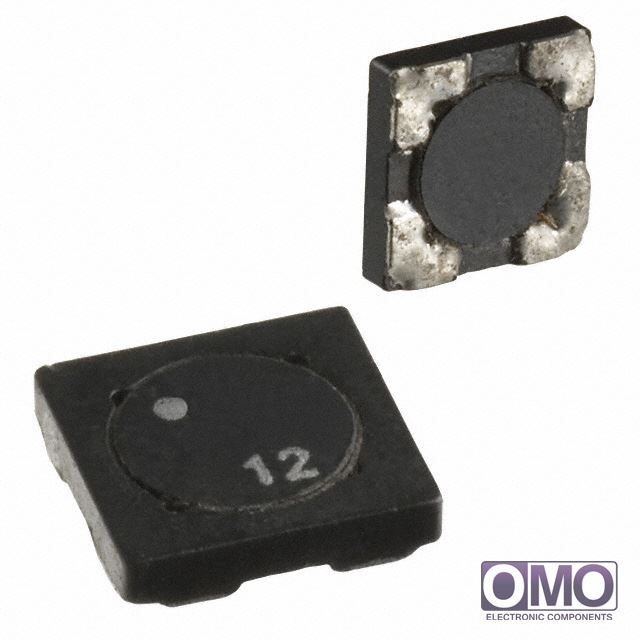

SDQ12-8R2-R
- Manufacturer
Eaton (formerly Cooper Bussmann)
- Description
- INDUCT ARRAY 2 COIL 8.41UH SMD
- Category
- Inductors, Coils, Chokes
- Family
- Arrays, Signal Transformers
- To learn about the specification of SDQ12-8R2-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add SDQ12-8R2-R with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of SDQ12-8R2-R.
- We are offering SDQ12-8R2-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SDQ12-8R2-R
| Packaging | Tape & Reel (TR) | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 33.64µH | |
| Inductance - Connected In Parallel | 8.41µH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 868mA | |
| Current Rating - Series | 434mA | |
| Current Saturation - Parallel | 1.05A | |
| Current Saturation - Series | 524mA | |
| DC Resistance (DCR) - Parallel | 331.8 mOhm | |
| DC Resistance (DCR) - Series | 1.33 Ohm | |
| Shielding | Shielded | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | |
| Height | 0.047" (1.20mm) | |
| Other Names | 513-1112-2 SDQ12-8R2 SDQ128R2R | |
| call me | [email protected] | |
