- Part Number

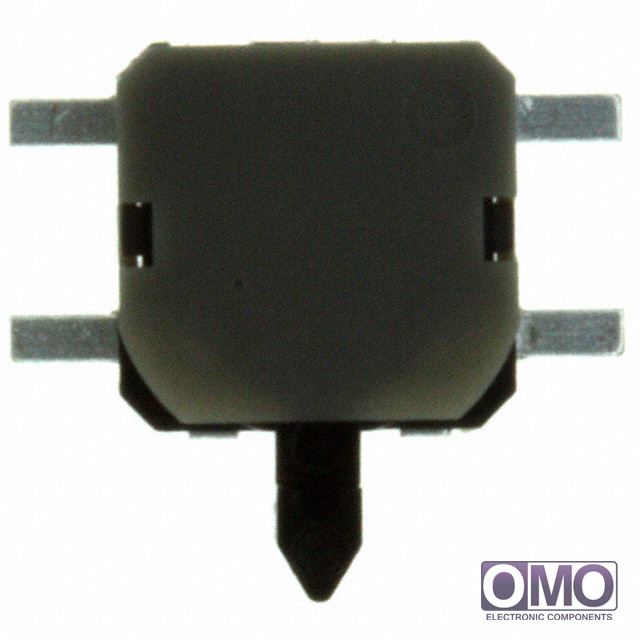

SDP001
- Manufacturer
C&K Components
- Description
- SWITCH DETECT PENDULUM MINI SPDT
- Category
- Switches
- Family
- Snap Action, Limit Switches
- To learn about the specification of SDP001, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add SDP001 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of SDP001.
- We are offering SDP001 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SDP001
| Packaging | Tape & Reel (TR) | |
| Circuit | SPDT | |
| Switch Function | Mom-Off-Mom | |
| Current Rating | 1mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 5V | |
| Actuator Type | Angled Toggle (Detector) | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | SMD (SMT) Tab | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 30gf | |
| Release Force | - | |
| Pretravel | - | |
| Differential Travel | - | |
| Overtravel | - | |
| Operating Position | - | |
| Mechanical Life | 50,000 Cycles | |
| Electrical Life | 50,000 Cycles | |
| Operating Temperature | -20°C ~ 70°C | |
| Other Names | CKN9958TR SDP001-ND | |
| call me | [email protected] | |
