- Part Number

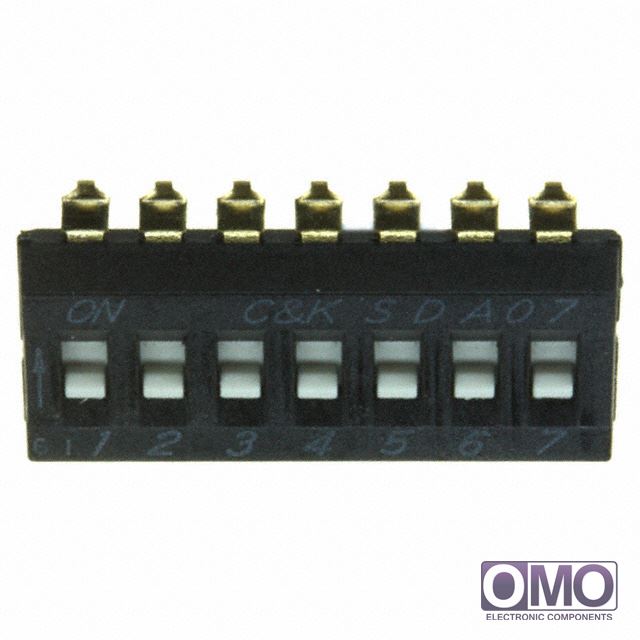

SDA07H0SBD
- Manufacturer
C&K Components
- Description
- SWITCH DIP UNSEALED 7POS SMD
- Category
- Switches
- Family
- DIP Switches
- To learn about the specification of SDA07H0SBD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add SDA07H0SBD with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of SDA07H0SBD.
- We are offering SDA07H0SBD for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SDA07H0SBD
| Packaging | Tube | |
| Circuit | SPST | |
| Number of Positions | 7 | |
| Current Rating | 25mA | |
| Voltage Rating | 24VDC | |
| Actuator Type | Slide (Standard) | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Height Above Board | 0.175" (4.45mm) | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | - | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.778" (19.76mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 1,000 Cycles | |
| Electrical Life | 1,000 Cycles | |
| Other Names | *SDA07H0SBD CKN6084 | |
