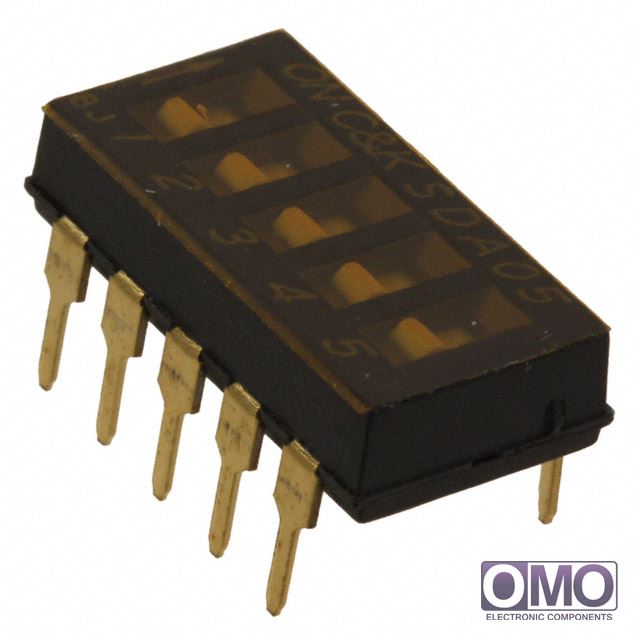

- Part Number
SDA05H0B
- Manufacturer
C&K Components
- Description
- SWITCH DIP TAPE SEALED 5POS 24V
- Category
- Switches
- Family
- DIP Switches
- To learn about the specification of SDA05H0B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add SDA05H0B with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of SDA05H0B.
- We are offering SDA05H0B for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SDA05H0B
| Packaging | Tube | |
| Circuit | SPST | |
| Number of Positions | 5 | |
| Current Rating | 25mA | |
| Voltage Rating | 24VDC | |
| Actuator Type | Slide (Standard) | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Height Above Board | 0.183" (4.65mm) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | Tape Seal | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.578" (14.68mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 1,000 Cycles | |
| Electrical Life | 1,000 Cycles | |
| Other Names | *SDA05H0B CKN6069 | |
