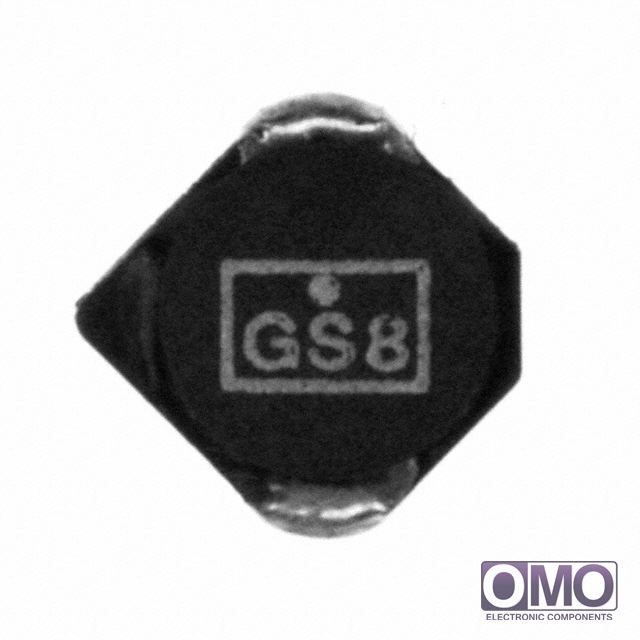

SD3814-4R7-R

View larger image

Part Number

SD3814-4R7-R

Manufacturer

Description
FIXED IND 4.7UH 1.06A 141 MOHM
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of SD3814-4R7-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SD3814-4R7-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SD3814-4R7-R.
  • We are offering SD3814-4R7-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SD3814-4R7-R
PackagingTape & Reel (TR)
TypeWirewound
Material - CoreFerrite
Inductance4.7µH
Tolerance±15%
Current Rating1.06A
Current - Saturation1.29A
ShieldingShielded
DC Resistance (DCR)141 mOhm
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 85°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)0.055" (1.40mm)
Supplier Device Package-
Other Names513-1564-2
SD3814-4R7-R-ND
