SD14-6R9-R

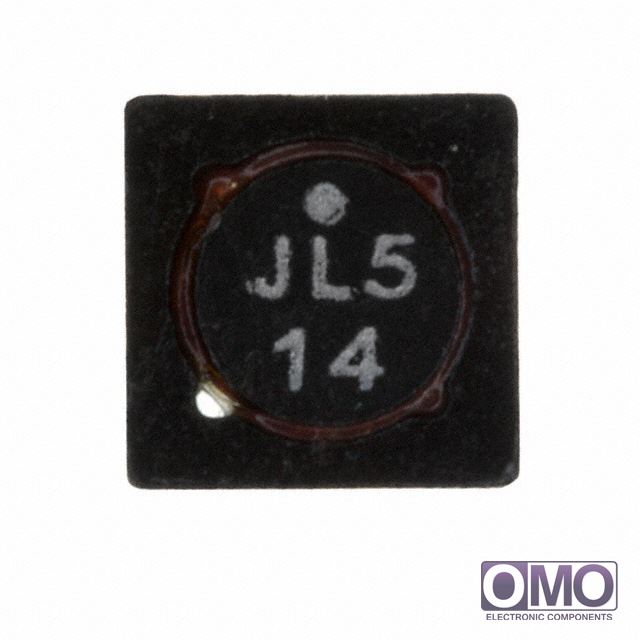

View larger image

Part Number

SD14-6R9-R

Manufacturer

Description
FIXED IND 6.9UH 1.35A 136.3 MOHM
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of SD14-6R9-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SD14-6R9-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SD14-6R9-R.
  • We are offering SD14-6R9-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SD14-6R9-R
PackagingTape & Reel (TR)
TypeWirewound
Material - CoreFerrite
Inductance6.9µH
Tolerance±20%
Current Rating1.35A
Current - Saturation1.41A
ShieldingShielded
DC Resistance (DCR)136.3 mOhm
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 85°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.204" L x 0.204" W (5.20mm x 5.20mm)
Height - Seated (Max)0.057" (1.45mm)
Supplier Device Package-
Other Names513-1178-2
SD14-6R9
SD14-6R9-ND
