SCH114-4R7

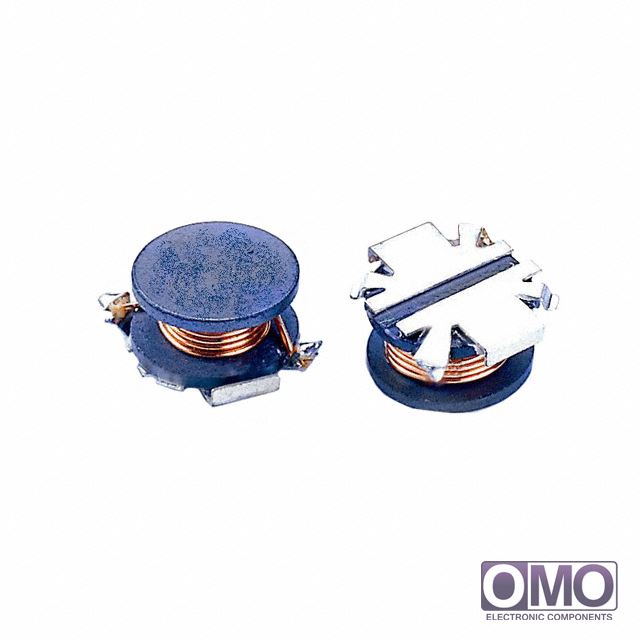

View larger image

Part Number

SCH114-4R7

Manufacturer

Description
FIXED IND 4.7UH 4.5A 44 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of SCH114-4R7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SCH114-4R7 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SCH114-4R7.
  • We are offering SCH114-4R7 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SCH114-4R7
PackagingTape & Reel (TR)
TypeWirewound
Material - Core-
Inductance4.7µH
Tolerance±30%
Current Rating4.5A
Current - Saturation5.1A
ShieldingUnshielded
DC Resistance (DCR)44 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max)0.193" (4.90mm)
Supplier Device Package-
