SC5022FH-3R9

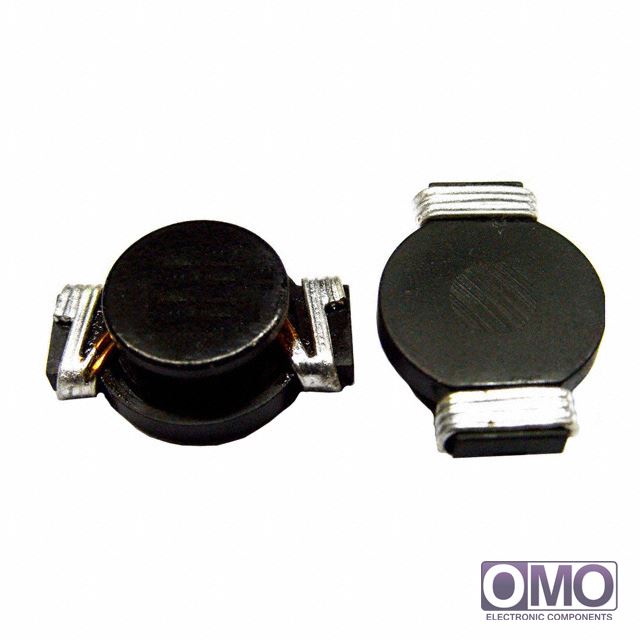

View larger image

Part Number

SC5022FH-3R9

Manufacturer

Description
FIXED IND 3.9UH 9A 10 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of SC5022FH-3R9, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SC5022FH-3R9 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SC5022FH-3R9.
  • We are offering SC5022FH-3R9 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SC5022FH-3R9
PackagingTape & Reel (TR)
TypeWirewound
Material - Core-
Inductance3.9µH
Tolerance±30%
Current Rating9A
Current - Saturation15A
ShieldingUnshielded
DC Resistance (DCR)10 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.880" L x 0.640" W (22.35mm x 16.26mm)
Height - Seated (Max)0.315" (8.00mm)
Supplier Device Package-
