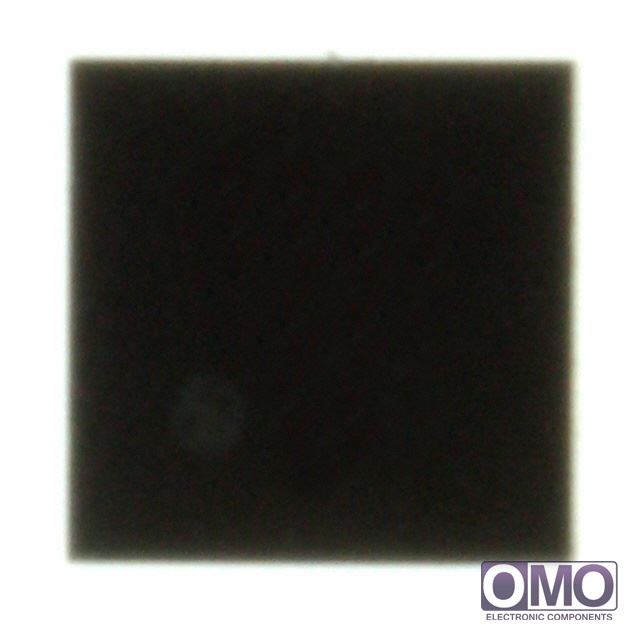

SC4509WLTRT

View larger image

Part Number

SC4509WLTRT

Manufacturer

Description
IC LED Driver DC DC Regulator PWM Dimming 30mA Backlight 8-MLPD-W (2x2)
Category
Integrated Circuits (ICs)
Family
PMIC - LED Drivers
  • To learn about the specification of SC4509WLTRT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SC4509WLTRT with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SC4509WLTRT.
  • We are offering SC4509WLTRT for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SC4509WLTRT
PackagingTape & Reel (TR)
TypeDC DC Regulator
TopologyStep-Up (Boost)
Internal Switch(s)Yes
Number of Outputs1
Voltage - Supply (Min)2.7V
Voltage - Supply (Max)10V
Voltage - Output20V
Current - Output / Channel30mA
Frequency1.2MHz
DimmingPWM
ApplicationsBacklight
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case8-WFDFN Exposed Pad
Supplier Device Package8-MLPD-W (2x2)
Other NamesSC4509WLTR
