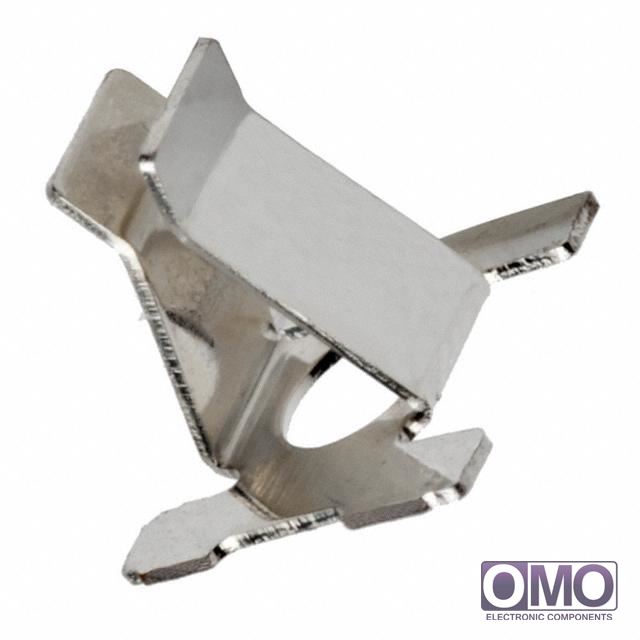

S9101-46R

View larger image

Part Number

S9101-46R

Manufacturer

Description
CONN SKT FOR 1.1-1.8MM PIN SMD
Category
Connectors, Interconnects
Family
Terminals - PC Pin Receptacles, Socket Connectors
  • To learn about the specification of S9101-46R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add S9101-46R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of S9101-46R.
  • We are offering S9101-46R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of S9101-46R
PackagingTape & Reel (TR)
Tail TypeClip
TerminationSurface Mount
Length - Overall0.177" (4.50mm)
Accepts Pin Diameter0.043" ~ 0.071" (1.10mm ~ 1.80mm)
Mounting Hole Diameter0.158" (4.01mm)
Pin Hole Diameter0.079" (2.00mm)
Flange Diameter-
Tail Diameter-
Socket Depth0.138" (3.51mm)
Contact MaterialPhosphor Bronze
Contact FinishTin
Contact Finish Thickness157.5µin (4.00µm)
Features-
Operating Temperature-40°C ~ 105°C
Board Thickness-
Insertion Force2.80Nm ~ 4.50Nm
Other Names952-1736-2
S910146R
