- Part Number

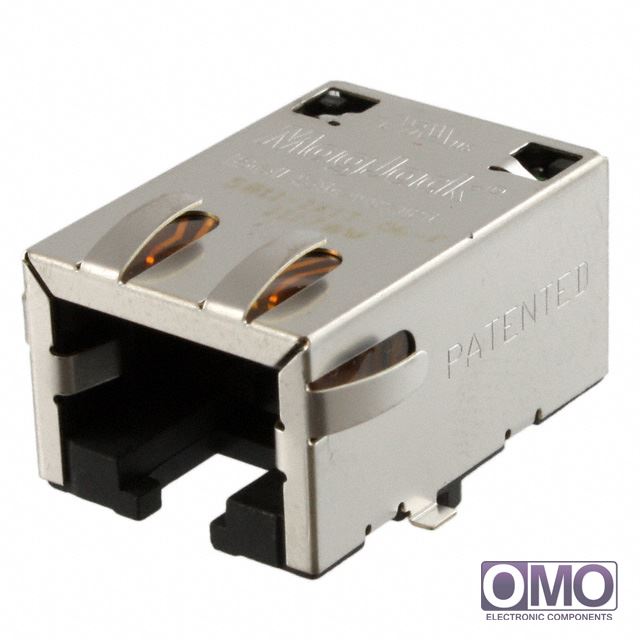

S811-1X1T-06-F
- Manufacturer
Bel Fuse Inc.
- Description
- CONN MAGJACK 1PORT 100 BASE-T
- Category
- Connectors, Interconnects
- Family
- Modular Connectors - Jacks With Magnetics
- To learn about the specification of S811-1X1T-06-F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add S811-1X1T-06-F with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of S811-1X1T-06-F.
- We are offering S811-1X1T-06-F for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of S811-1X1T-06-F
| Packaging | Tape & Reel (TR) | |
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 10/100 Base-T, AutoMDIX | |
| Mounting Type | Surface Mount | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.502" (12.75mm) | |
| LED Color | Does Not Contain LED | |
| Number of Cores per Jack | 4 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Guide, Solder Retention | |
| Tab Direction | Down | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Shield Material | Copper Alloy | |
| Housing Material | Polyamide (PA), Nylon | |
| Operating Temperature | - | |
| Other Names | 507-1456-2 S8111X1T06-F S8111X1T06F | |
