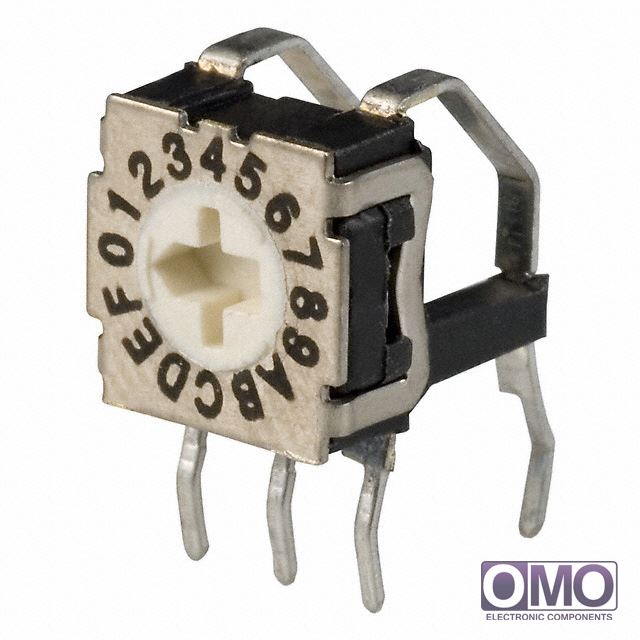

- Part Number
RTE1600V43
- Manufacturer
C&K Components
- Description
- SWITCH ROTARY SLOT R/A HEX DEC
- Category
- Switches
- Family
- DIP Switches
- To learn about the specification of RTE1600V43, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add RTE1600V43 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of RTE1600V43.
- We are offering RTE1600V43 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of RTE1600V43
| Packaging | Tube | |
| Circuit | Hexadecimal | |
| Number of Positions | 16 | |
| Current Rating | 100mA | |
| Voltage Rating | 30VDC | |
| Actuator Type | Rotary for Tool | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Bronze | |
| Contact Finish | Gold | |
| Height Above Board | 0.335" (8.50mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | No | |
| Features | - | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.291" (7.40mm) | |
| Operating Temperature | -25°C ~ 85°C | |
| Mechanical Life | 20,000 Steps | |
| Electrical Life | - | |
| Other Names | *RTE1600V43 401-1423-5 RTE1600V43-ND Y36D00243FP | |
| call me | [email protected] | |
