- Part Number
RTE1001V14
- Manufacturer
C&K Components
- Description

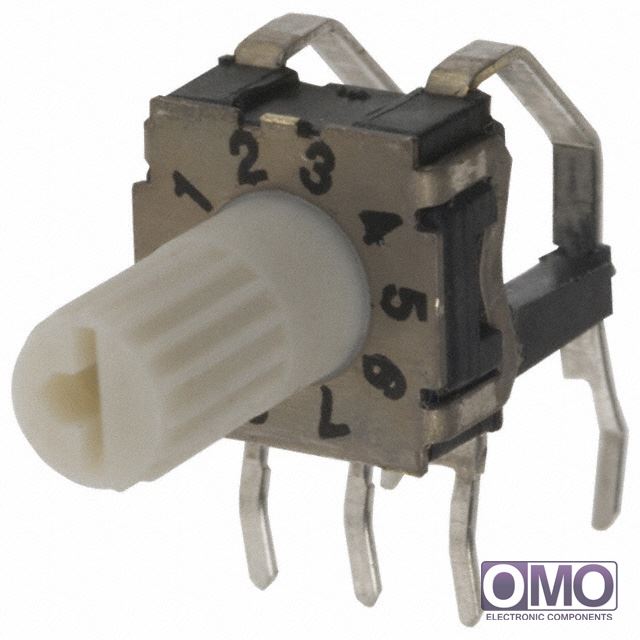

- SW ROTARY SHAFT RT ANGLE BCD 30V
- Category
- Switches
- Family
- DIP Switches
- To learn about the specification of RTE1001V14, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add RTE1001V14 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of RTE1001V14.
- We are offering RTE1001V14 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of RTE1001V14
| Packaging | Tube | |
| Circuit | BCD | |
| Number of Positions | 10 | |
| Current Rating | 100mA | |
| Voltage Rating | 30VDC | |
| Actuator Type | Rotary with Shaft | |
| Actuator Level | Raised | |
| Contact Material | Bronze | |
| Contact Finish | Gold | |
| Height Above Board | 0.335" (8.50mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | No | |
| Features | - | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.291" (7.40mm) | |
| Operating Temperature | -25°C ~ 85°C | |
| Mechanical Life | 20,000 Steps | |
| Electrical Life | - | |
| Other Names | *RTE1001V14 401-1875-5 Y36C01213FPROHS | |
| call me | [email protected] | |
