- Part Number

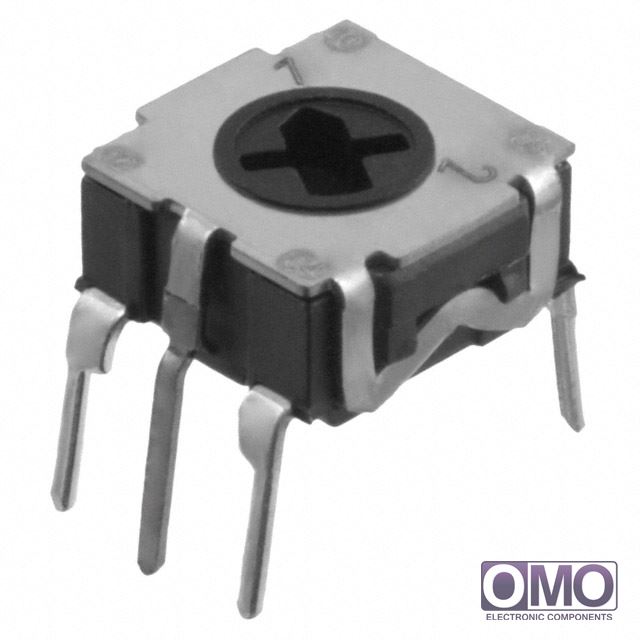

RTE0210N05
- Manufacturer
C&K Components
- Description
- SWITCH ROTARY SP 2POS T/H
- Category
- Switches
- Family
- DIP Switches
- To learn about the specification of RTE0210N05, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add RTE0210N05 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of RTE0210N05.
- We are offering RTE0210N05 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of RTE0210N05
| Packaging | Tube | |
| Circuit | SPDT | |
| Number of Positions | 2 | |
| Current Rating | 100mA | |
| Voltage Rating | 50VDC | |
| Actuator Type | Rotary for Tool | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Bronze | |
| Contact Finish | Silver | |
| Height Above Board | 0.167" (4.25mm) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | No | |
| Features | - | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.291" (7.40mm) | |
| Operating Temperature | -25°C ~ 85°C | |
| Mechanical Life | 1,500 Steps | |
| Electrical Life | - | |
| Other Names | *RTE0210N05 CKN10256 Y36A10001FP LFT Y36A10001FPLFT | |
| call me | [email protected] | |
