Part Number

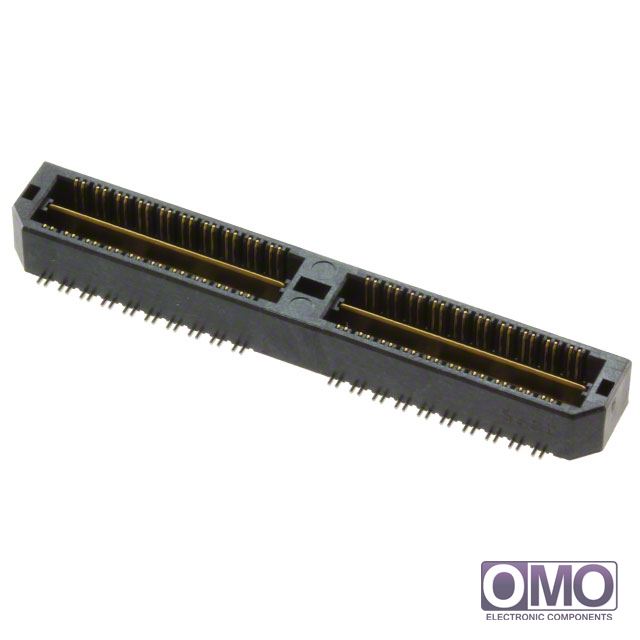

QTH-040-01-L-D-DP-A

Manufacturer

Description
CONN HEADER 80POS .020" SMT GOLD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine

  • To learn about the specification of QTH-040-01-L-D-DP-A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add QTH-040-01-L-D-DP-A with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of QTH-040-01-L-D-DP-A.
  • We are offering QTH-040-01-L-D-DP-A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of QTH-040-01-L-D-DP-A
PackagingTray
Connector TypeDifferential Pair Array, Male
Number of Positions80
Pitch0.020" (0.50mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide, Ground Bus (Plane)
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Mated Stacking Heights5mm
Height Above Board0.160" (4.06mm)
Other NamesQTH-040-01-L-D-DP-A-ND
SAM8849
