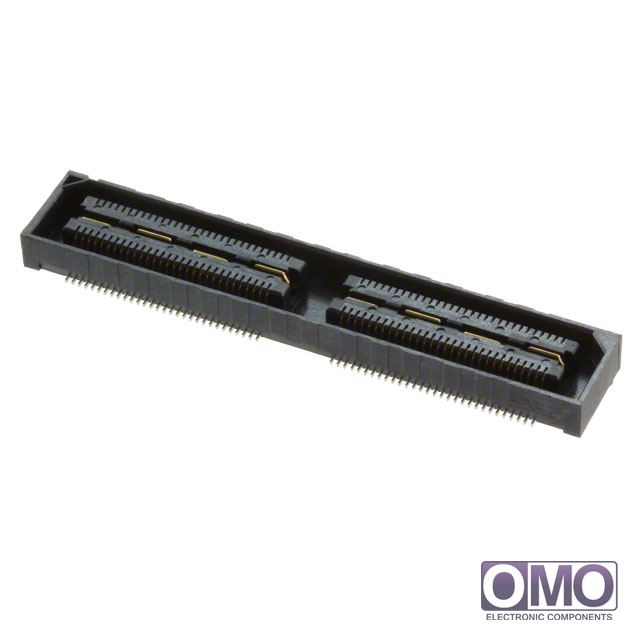

Part Number

QSH-060-01-F-D-A

Manufacturer

Description
CONN RECPT 120POS .020" SMT GOLD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine

  • To learn about the specification of QSH-060-01-F-D-A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add QSH-060-01-F-D-A with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of QSH-060-01-F-D-A.
  • We are offering QSH-060-01-F-D-A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of QSH-060-01-F-D-A
PackagingTray
Connector TypeReceptacle, Center Strip Contacts
Number of Positions120
Pitch0.020" (0.50mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide, Ground Bus (Plane)
Contact FinishGold
Contact Finish ThicknessFlash
Mated Stacking Heights5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board0.128" (3.25mm)
Other NamesQSH-060-01-F-D-A-ND
SAM8844
