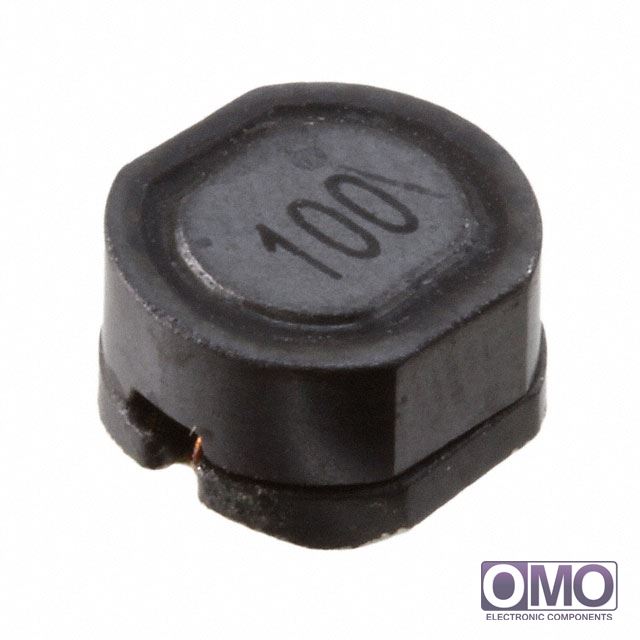

PM74SB-560L-RC

View larger image

Part Number

PM74SB-560L-RC

Manufacturer

Description
FIXED IND 56UH 760MA 290 MOHM
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of PM74SB-560L-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add PM74SB-560L-RC with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of PM74SB-560L-RC.
  • We are offering PM74SB-560L-RC for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PM74SB-560L-RC
PackagingTape & Reel (TR)
TypeWirewound
Material - CoreFerrite
Inductance56µH
Tolerance±15%
Current Rating760mA
Current - Saturation890mA
ShieldingShielded
DC Resistance (DCR)290 mOhm Max
Q @ Freq-
Frequency - Self Resonant11MHz
Operating Temperature-40°C ~ 125°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)0.193" (4.90mm)
Supplier Device Package-
