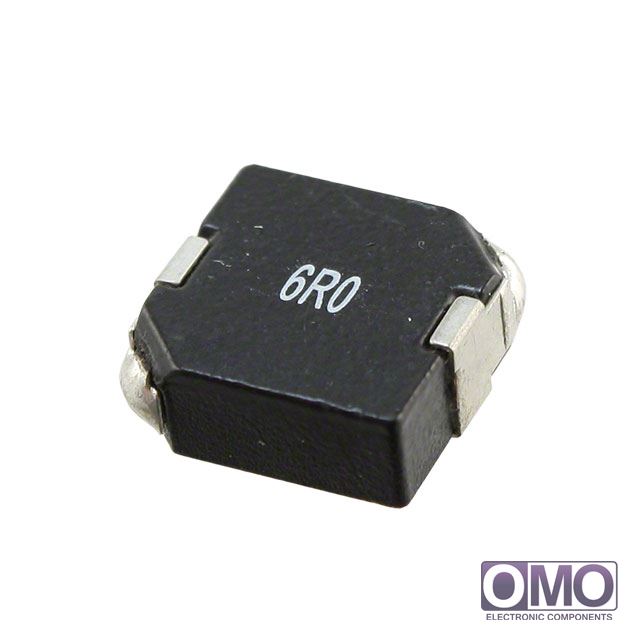

PM13560S-6R0M

View larger image

Part Number

PM13560S-6R0M

Manufacturer

Description
FIXED IND 6UH 9.5A 10.7 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of PM13560S-6R0M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add PM13560S-6R0M with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of PM13560S-6R0M.
  • We are offering PM13560S-6R0M for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PM13560S-6R0M
PackagingTape & Reel (TR)
TypeWirewound
Material - CoreIron
Inductance6µH
Tolerance±20%
Current Rating9.5A
Current - Saturation-
ShieldingShielded
DC Resistance (DCR)10.7 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 150°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Max)0.232" (5.90mm)
Supplier Device Package-
Other NamesM1283TR
